PF Aperflux 101

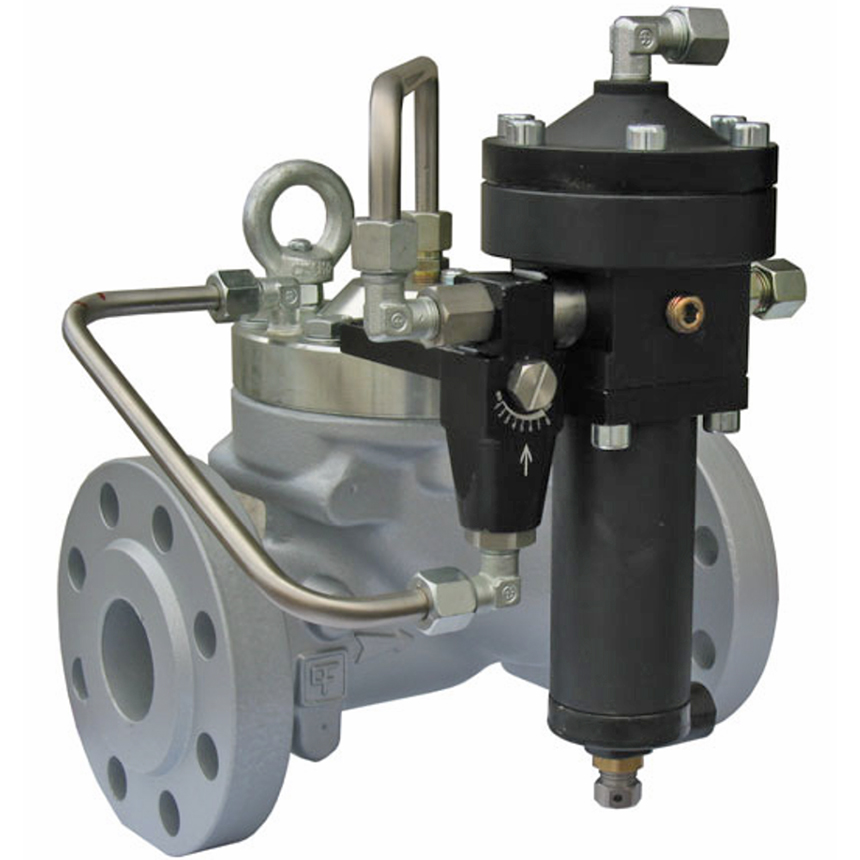

PF Aperflux 101 Pilot-Operated Gas Pressure Regulators

The Aperflux 101 is a boot style pilot-controlled pressure regulator for medium and high pressure applications. Aperflux 101 is normally a failed open regulator and specifically will open under the following circumstances:
• Breakage of main diaphragm;
• Lack of pressure feeding the pilot circuit;
These regulators are suitable for use with previously filtered, non-corrosive gases.

Functional Features*:

• Maximum inlet pressure:  Up to 1,233 PSIG
• Range of downstream pressure:  From 1,170 PSIG – depending on installed pilot
• Minimum working differential pressure: 14.5 PSIG
• Minimum ambient temperature:  Execution up -40°F
• Maximum ambient temperature:  140°F
• Flowing gas temperature:  -4°F to 140°F
• Accuracy class AC:  Up to 1.5% Gauge
• Look-up pressure class SG:  Up to 2.5% Gauge

Design Features:

• Normal dimensions (DN):  2″ ; 3″
• Flanged connections:  Class 150-300-600 RF or RTJ, according to ANSI B16.5 and PN 16 according to UNI 2282 or DIN 2263, (ISO 7005).

Materials**:
• Body: Cast steel ASTM A 352 LCC for classes ANSI 600 and 300;
-Cast steel ASTM A 352 LCC for classes ANSI 600 and 300;
-Cast steel ASTM A 216 WCB for classes ANSI 150 and PN 16;
• Head Covers:  Cast steel ASTM A 350 LF2
• Diaphragm:  Rubberized canvas
• Seat:  Stainless steel for DN=<DN 80 (3″), carbon steel with stainless steel sealing edge for DN>=DN 100 (4″)
• Sealing ring:  Nitril rubber
• Connection fittings:  In zinc-plated carbon steel according to DIN 2353; Stainless steel on request.
• Accuracy class AC:  Up to 1.5% Gauge
• Look-up pressure class SG:  Up to 2.5% Gauge

*Different functional features available on request.
**The materials indicated above refer to the standard models. Different materials can be provided according to specific needs.
