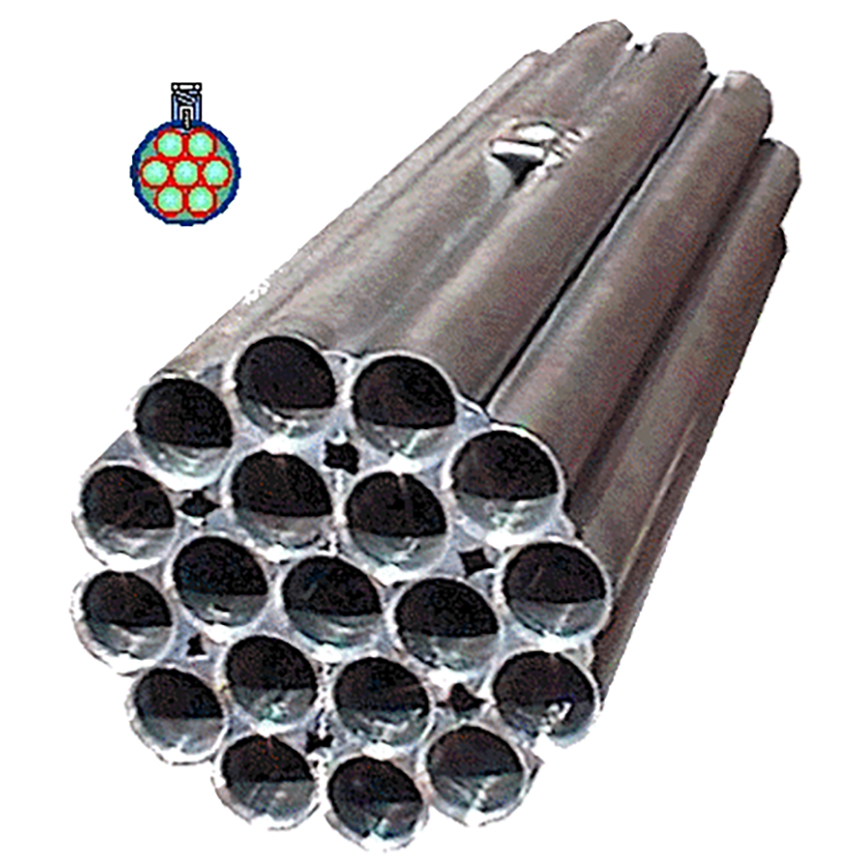

APOLLO VSPL Series Vane Spools

APOLLO VSPL Series Vane Spools

Apollo VSPL Series inlet vane spools provide easy standardization and minimal field fabrication effort to save time and money.

All inlet piping spools conform to AGA, ASME and API requirements and can be fitted with either.

Model Inlet Outlet L1 Weight
VSPL-0315 3″-150# RF 3″-150# FF 3′-6″ 65 lbs
VSPL-0330 3″-300# RF 3″-300# RF 3′-6″ 75 lbs
VSPL-0415 4″-150# RF 4″-150# FF 4′-0″ 90 lbs
VSPL-0430 4″-300# RF 4″-300# RF 4′-0″ 110 lbs
VSPL-0615 6″-150# RF 6″-150# FF 6′-0″ 180 lbs
VSPL-0630 6″-300# RF 6″-300# RF 6′-0″ 220 lbs
VSPL-0815 8″-150# RF 8″-150# FF 8′-0″ 350 lbs
VSPL-0830 8″-300# RF 8″-300# RF 8′-0″ 410 lbs
VSPL-1015 10″-150# RF 10″-150# FF 10′-0″ 565 lbs
VSPL-1030 10″-300# RF 10″-300# RF 10′-0″ 645 lbs
VSPL-1215 12″-150# RF 12″-150# FF 12′-0″ 845 lbs
VSPL-1230 12″-300# RF 12″-300# RF 12′-0″ 965 lbs
